How Do You Design an ADA Bathroom for a Hotel Without Failing Inspection?
Quick Answer: To design an ADA bathroom that passes inspection, hotels must follow strict ADA bathroom requirements for toilet height, grab bars, clearance space, faucets, and bathtubs. This guide is a practical, step-by-step manual designed for B2B hotel project managers to implement directly on-site, ensuring you avoid failed inspections and save thousands in costly retrofit expenses.
Table of Contents
Hello! I’m Helen. Over the last ten years, I’ve worked closely with overseas hotel developers, architects, and procurement teams in the sanitary ware industry.
If you manage hotel projects, you know the nightmare of a delayed grand opening. Last year, a client’s luxury boutique hotel failed its final inspection because a custom vanity encroached on the clear floor space by just one inch. That single mistake cost them $15,000 in demolition and a two-week delay.
Why do hotel ADA bathrooms fail inspections so frequently? Because meeting ADA bathroom requirements is about understanding how space, measurements, and products interact.
In this actionable guide, I will show you how to master your ADA bathroom layout with solutions from George Buildshop, ensuring your project passes on the very first try.
What Are ADA Bathroom Requirements for Hotels?
ADA bathroom requirements for hotels include compliant toilet height, properly installed grab bars, sufficient wheelchair transfer space, accessible faucets, and compliant bathtubs or showers.
To pass inspection, you must strictly follow these ADA bathroom specifications:
ADA toilet height:
💡 Practical Tip: Measure from the finished floor (including tile) to the top of the seat.
⚠ Risk: If you measure from the subfloor, your toilet will be too short, resulting in instant failure.
ADA grab bar requirements: *
💡 Practical Tip: Ensure solid wood wall blocking is installed before drywall goes up.
⚠ Risk: Grab bars installed only into drywall will collapse under weight, causing severe liability.

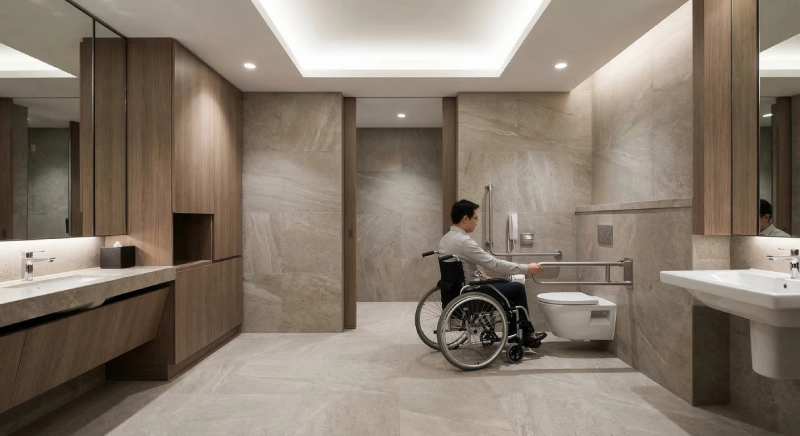

ADA toilet clearance:
💡 Practical Tip: Measure the 60-inch turning radius with the bathroom door in the open swing position.
ADA bathtub requirements:
💡 Practical Tip: The bathtub seat and grab bars must be coordinated so the bar doesn’t block the user from sitting.
ADA faucet requirements:
💡 Practical Tip: Test the handle. If it requires tight grasping or twisting, it fails.
At George Buildshop, we constantly remind our B2B clients: ADA compliance depends on coordinating the entire system design rather than just buying compliant products.
Why Do Hotel ADA Bathrooms Fail Inspection?
Let’s look at real-world engineering failures. Here are the most common reasons hotel bathrooms fail, and the solutions to prevent them:
Incorrect Toilet Placement: * The Issue: Toilets installed 15 inches from the side wall instead of the required 16–18 inches.
Solution: Use a laser level and measure from the finished side wall, not the framing.
Grab Bars at the Wrong Height: * The Issue: Missing the strict 33–36 inches window.
Solution: Factor in the exact thickness of your floor mortar and tile before setting the grab bar height.
Insufficient Wheelchair Clearance: * The Issue: Failing to provide the minimum 60 inches of space.
Solution: Check your clear floor space before permanently installing custom vanities.
Incorrect Bathtub Installation: * The Issue: Installing a standard tub without a securely fastened transfer seat.
Solution: Procure complete ADA tub packages that include pre-measured seats.
7 ADA Bathroom Mistakes That Cause Hotel Inspection Failures
Based on project audits we conduct at George Buildshop, catching these seven mistakes during the drafting phase will save your budget.
Mistake 1: Ignoring Finished Floor Thickness for Toilets
✔ Checkpoint: Does your ADA toilet height measure exactly 17–19 inches from the finished tile to the top of the seat?
💡 Practical Tip: Never measure from the porcelain bowl rim. Always include the seat in your calculations.
Mistake 2: Incorrect Grab Bar Height
✔ Checkpoint: Are your grab bars securely mounted between 33–36 inches?
⚠ Risk: Installing grab bars too high renders them useless for a guest transferring from a wheelchair.
Mistake 3: Vanity Blocking Toilet Clearance
✔ Checkpoint: Do you have an unobstructed 60-inch turning space?
💡 Practical Tip: In small hotel bathrooms, use wall-mounted sinks with exposed plumbing protection to maximize your ADA toilet clearance.
Mistake 4: Missing the Rear Wall Grab Bar
✔ Checkpoint: Do you have a 36-inch grab bar on the rear wall?
⚠ Risk: Contractors often remember the side wall but forget the rear wall. Both are mandatory under ADA grab bar requirements.
Mistake 5: Uncoordinated Bathtub Accessibility
✔ Checkpoint: Does the transfer seat block access to the grab bar?
💡 Practical Tip: ADA bathtub requirements demand that all elements work together. Buy these components as a single coordinated set.
Mistake 6: Hard-to-Operate Faucets
✔ Checkpoint: Can you turn the sink on with a closed fist?
💡 Practical Tip: ADA faucet requirements dictate that controls must operate with less than 5 lbs of force.
Mistake 7: Door Swing Conflicts
✔ Checkpoint: Does the bathroom door swing into the clear floor space?
💡 Practical Tip: Always use out-swinging doors or pocket doors to protect your ADA bathroom layout.

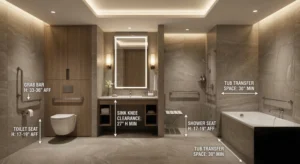

What Are the Most Important ADA Bathroom Measurements?
These measurements form the absolute foundation of your ADA bathroom specifications.
ADA Requirements & Measurement Guide
👉 Swipe horizontally to see full details on ADA measurements and practical notes
| Feature / Metric | ADA Requirement | How to Measure / Practical Notes |
|---|---|---|
| Toilet Height | 17–19 inches | Measure from the finished floor tile to the top of the toilet seat. |
| Grab Bars | 33–36 inches | Measure from the finished floor to the top of the gripping surface. |
| Clearance | 60 inches minimum | Measure with the door in the open position to ensure no swing overlap. |
| Faucets | Under 5 lbs force | Test without pinching or twisting the wrist. |

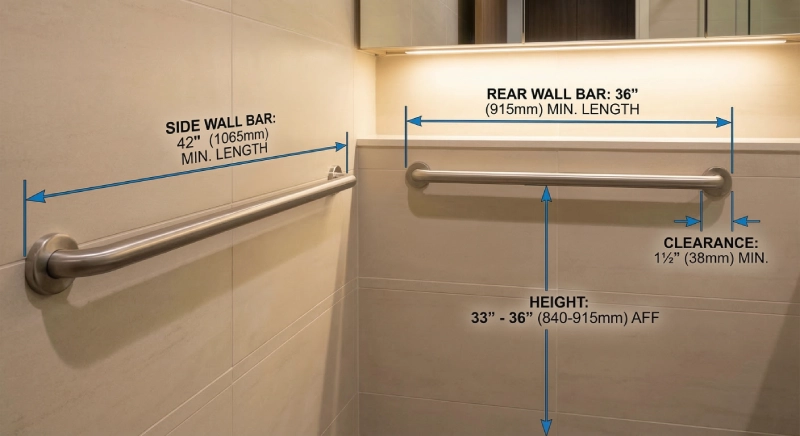

Where Should Grab Bars Be Installed in an ADA Hotel Bathroom?
Proper grab bar installation is heavily scrutinized by inspectors.
[Placeholder: Image of Grab Bar Layout with 33-36″ height and length annotations]
Side Wall: Must be a minimum of 42 inches long, located a maximum of 12 inches from the rear wall.
Rear Wall: Must be a minimum of 36 inches long, extending from the centerline of the toilet.
💡 Practical Tip: At George Buildshop, we provide B2B clients with precise, to-scale diagrams to ensure your framing contractors install the wood blocking exactly where it needs to be.

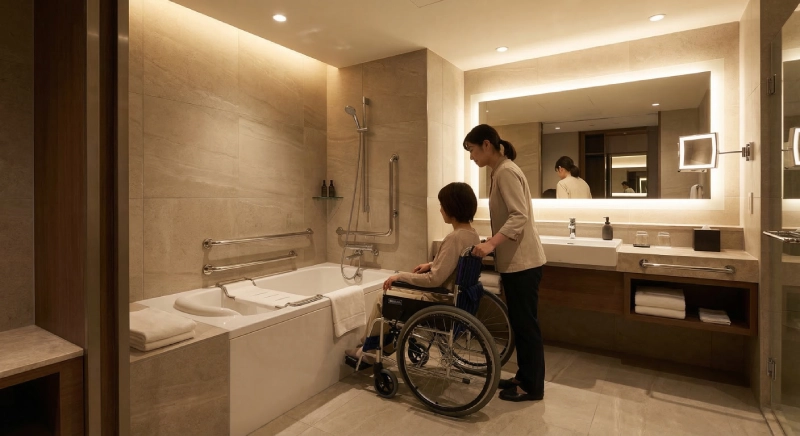

Do Hotel ADA Bathrooms Need Accessible Bathtubs?
Yes. Depending on your key count, your hotel will require either a transfer bathtub or a roll-in shower.
To meet ADA bathtub requirements, a transfer bathtub must include properly positioned grab bars and a securely attached seat.
⚠ Risk: The biggest mistake I see is a lack of coordination. If the grab bar is installed where the seat is supposed to go, the guest cannot transfer safely. Always plan these two elements together!

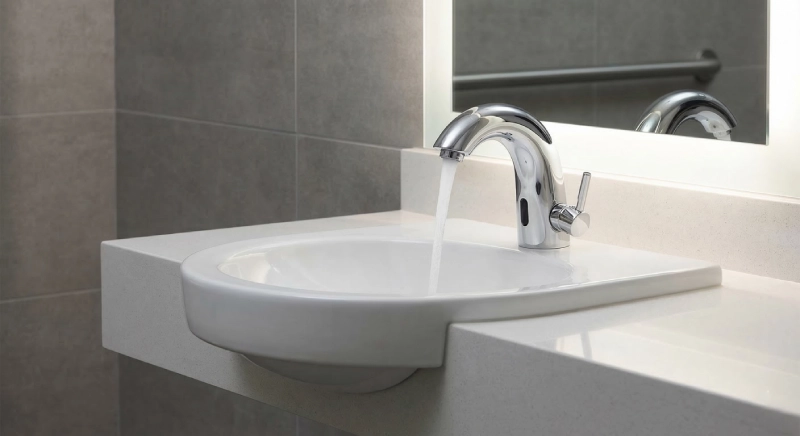

What Faucet Requirements Apply to ADA Bathrooms?
Sinks and vanities are critical touchpoints. ADA faucet requirements dictate that the controls must allow for one-hand operation.
💡 Practical Tip: Specify lever handles, push-type mechanisms, or motion sensors. If a guest with arthritis cannot easily turn on the water, your fixture will fail the inspection.
How Do You Design an ADA Bathroom Layout for a Hotel?
To avoid costly rework, follow this systematic, step-by-step workflow during the design phase:
Step 1: Map the Clear Floor Space. Before placing any fixtures, draw your 60-inch minimum ADA toilet clearance and a 30×48 inch clear space in front of the sink.
Step 2: Plan the Toilet Position. Center your toilet exactly 16 to 18 inches from the side wall to meet strict ADA bathroom specifications.
Step 3: Pre-plan Wall Blocking. Mark the framing plans for heavy-duty wood blocking to ensure ADA grab bar requirements can be met safely.
Step 4: Verify Vertical Heights. Double-check your ADA toilet height against the architect’s final floor finishing schedule.
Step 5: Select Compliant Fixtures. Choose hardware from a trusted supplier like George Buildshop to guarantee you meet all ADA faucet requirements and ADA bathtub requirements.
ADA Bathroom Compliance Checklist for Hotels
Print this checklist and give it to your on-site project managers!
✔ Toilet Position: Centerline is 16–18 inches from the side wall.
✔ ADA toilet height: 17–19 inches (measured from finished floor to top of seat).
✔ ADA grab bar requirements: Securely mounted at 33–36 inches high.
✔ Grab Bar Lengths: 42-inch side wall bar, 36-inch rear wall bar.
✔ ADA toilet clearance: Minimum 60-inch turning radius is totally unobstructed.
✔ ADA bathtub requirements: Seat and grab bars are coordinated and secure.
✔ ADA faucet requirements: Lever or sensor operation requiring <5 lbs of force.
Who Is Responsible for ADA Bathroom Compliance?
In a B2B hotel project, ADA compliance is a shared responsibility.
Architects draft the initial ADA bathroom layout.
Contractors execute the precise measurements on-site.
Procurement Teams source the right products.
If the architect draws a compliant room, but the procurement team buys a vanity that is two inches too deep, the whole system fails. Constant coordination is mandatory.
Conclusion: ADA Bathroom Compliance Is a System
As I’ve seen time and time again over the last decade, hotel ADA compliance is a comprehensive system design issue. Passing your inspection depends on harmonizing the ADA toilet height, strict ADA grab bar requirements, precise ADA toilet clearance, robust ADA bathtub requirements, and accessible ADA faucet requirements.
If you address these crucial ADA bathroom specifications during the design phase, your hotel will avoid inspection failures and incredibly costly redesigns.
Are you currently working on a hotel project? Would you like me to connect you with our engineering team at George Buildshop to review your ADA bathroom layout and provide a fully compliant fixture package?
FAQ
1. Where should grab bars be installed to pass inspection?
To meet ADA grab bar requirements, install a 42-inch minimum bar on the side wall and a 36-inch minimum bar on the rear wall. Both must be mounted exactly 33 to 36 inches above the finished floor.
💡 Tip: Always measure from the finished tile, not the subfloor.
2. How do I measure toilet clearance in a small hotel bathroom?
ADA toilet clearance requires a minimum 60-inch circular turning space.
💡 Tip: Measure this space with the bathroom door in the open position to ensure the door swing does not encroach on the wheelchair transfer area.
3. What are common bathtub mistakes that fail ADA compliance?
The most common failure regarding ADA bathtub requirements is failing to coordinate the grab bars and the transfer seat. If the grab bar blocks the seat, it fails.
4. How do you measure ADA toilet height correctly? ADA toilet height must be 17 to 19 inches.
💡 Tip: Measure from the finished floor to the very top of the toilet seat, not the porcelain rim.
5. What are the rules for hotel bathroom sinks?
Sinks must offer knee clearance for wheelchair users, and the hardware must meet ADA faucet requirements—meaning lever handles or sensors that require less than 5 lbs of operating force.
Related ADA Bathroom Compliance Guides
References & Official ADA Design Standards
As I always tell my project teams and clients at George Buildshop, when in doubt, look directly at the official federal guidelines. The measurements and specifications provided in this guide are strictly based on the 2010 ADA Standards for Accessible Design, published by the Department of Justice (DOJ) and the U.S. Access Board.
For full technical specifications, architectural drawings, and legal compliance details, please refer to the following authoritative sources:
U.S. Department of Justice – ADA.gov: 2010 ADA Standards for Accessible Design (Official Document)
Water Closets and Toilet Compartments (Section 604): Details the strict 17–19 inches ADA toilet height and clearance rules.
Grab Bars (Section 609): Outlines the 33–36 inches height requirement, structural strength, and spacing for ADA grab bar requirements.
Turning Space and Clear Floor Space (Section 304 & 305): Defines the 60-inch minimum turning radius required for ADA toilet clearance.
Bathtubs and Showers (Section 607 & 608): Specifies the grab bar placement and seat requirements for ADA bathtub requirements.
Operable Parts / Faucets (Section 309): Mandates the maximum 5 lbs of operating force for ADA faucet requirements.
Disclaimer: While this guide is designed to help B2B hotel project managers navigate ADA bathroom layout requirements, local building codes (such as California’s Title 24 or ANSI A117.1) may impose additional, stricter regulations. Always consult with a licensed architect and your local code enforcement agency before finalizing construction.
