ADA Bathroom Grab Bar Height: Why Contractors Still Fail Inspections (33–36 Inch Rule)
Picture this: You are managing a multi-million-dollar hotel renovation. The premium tiles are shining, the modern fixtures are in place, and you are just days away from the grand opening. Then, the city building inspector walks in with a tape measure, shakes his head, and hands you a failed inspection report. The primary reason? Your grab bars are half an inch too low.
Hi, I am Helen. Over my 10 years working as a sanitary ware expert alongside hotel project managers and commercial contractors, I have seen this exact nightmare play out more times than I can count. A simple mistake with your ada bathroom grab bar height can lead to tearing down expensive porcelain tiles, delaying your hotel opening, and costing thousands of dollars in rework.
Let me save you the headache. If you are wondering how to get your commercial bathroom compliance right the first time, here is exactly what you need to know.
Table of Contents
What Is the Correct ADA Bathroom Grab Bar Height?
Quick Answer

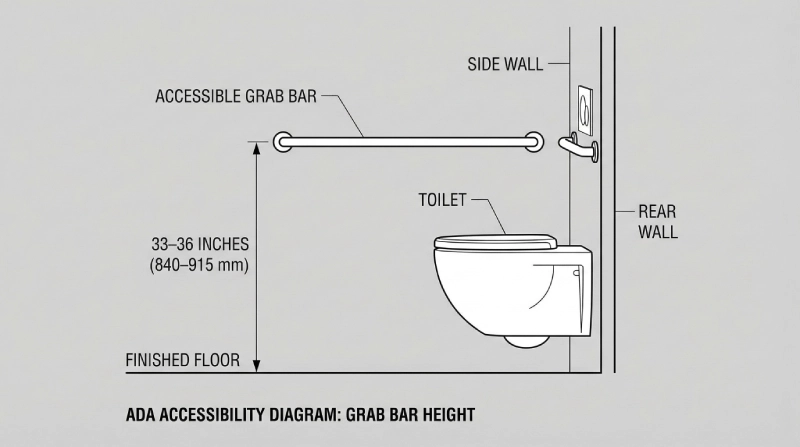

The ada bathroom grab bar height must be installed strictly between 33 inches and 36 inches above the finished floor (AFF).
The measurement must be taken to the top of the gripping surface, not the center or bottom of the grab bar.
According to the U.S. Access Board ADA Standards for Accessible Design (Section 609.4), grab bars must be installed between 33 and 36 inches above the finished floor. This applies universally to hotels, hospitals, senior living facilities, and other commercial buildings.
In short, the correct ada bathroom grab bar height is 33–36 inches above the finished floor, measured to the top of the gripping surface. This height requirement ensures safe support for wheelchair users and individuals with limited mobility during toilet transfers in ADA-compliant bathrooms.
In this comprehensive B2B guide, we will break down exactly why skilled contractors still miss this mark, how to master your ada bathroom grab bar installation, and how partnering with George Buildshop can ensure your project passes inspection with flying colors.
What Does AFF Mean for ADA Bathroom Grab Bar Height Installation?
When managing a massive hotel build, your framing and drywall teams are usually the ones marking the walls for future fixture installations. This is where the first major trap happens, and it is entirely based on a misunderstanding of the acronym “AFF.”
In the commercial construction world, AFF stands for “Above Finished Floor.”
Definition: AFF (Above Finished Floor) means all ADA measurements must be taken after the final flooring materials—such as tile, stone, or vinyl—are fully installed.
The critical keyword here is finished. Understanding ada bathroom grab bar requirements is essential for contractors working on commercial hospitality projects. Many ADA inspection failures occur not because of product defects, but because installers misunderstand the measurement reference points defined in ADA standards.
When measuring AFF and planning installations on site, always consider how grab bar location and clear floor space must work together with ADA toilet clearance requirements to ensure the entire bathroom functions for wheelchair users and inspectors alike.

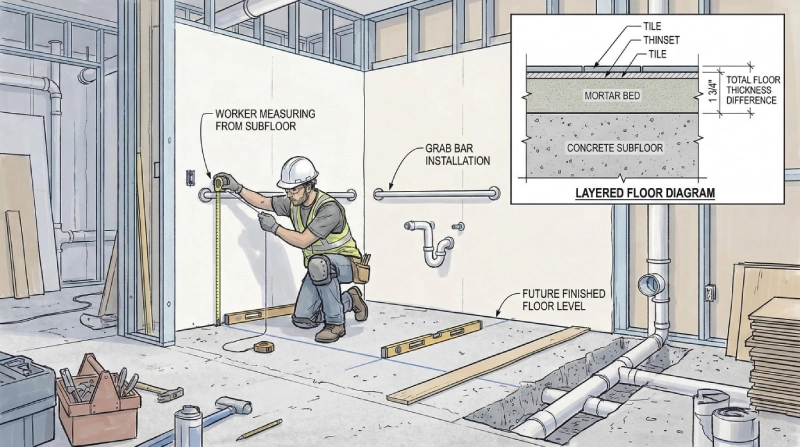

A few years ago, a B2B client of mine—a boutique hotel project manager—called me in a panic. His framing team had perfectly marked the ada bathroom grab bar height at exactly 33 inches. Yet, they failed the ADA inspection. Why? Because the workers measured 33 inches from the raw concrete subfloor during the rough-in phase. They completely forgot to account for the thickness of the mortar bed, the waterproofing membrane, and the commercial-grade ceramic floor tiles that were installed three weeks later.
By the time the floor was completely finished, the ground level had risen by almost a full inch. That perfectly marked 33-inch line was now sitting at 32.1 inches above the finished floor. Because the absolute minimum ada bathroom grab bar height is 33 inches, the grab bars were suddenly non-compliant.
To help your team visualize this, I always provide my clients at George Buildshop with this simple calculation table. Print this out and hand it to your site supervisor:
The Subfloor vs. Finished Floor Calculation Trap
ADA Grab Bar Height Measurements
👉 Swipe horizontally to view full measurement details
| Marked on Subfloor | Material Added | Floor Thickness | Actual Final Height (AFF) | Inspection Status |
|---|---|---|---|---|
| 33.0 inches | Thinset + Porcelain Tile | −0.8 inches | 32.2 inches | ❌ FAILED (Too Low) |
| 33.0 inches | Mortar Bed + Natural Stone | −1.2 inches | 31.8 inches | ❌ FAILED (Way Too Low) |
| 34.5 inches (Author's Original Advice) | Thinset + Porcelain Tile | −0.8 inches | 33.7 inches | ✅ PASSED (Safe, but not center) |
| 35.3 inches (The True Perfect Center) | Thinset + Porcelain Tile | −0.8 inches | 34.5 inches | ✅ PASSED (Perfect Center) |
Pro Tip: During your ada bathroom grab bar installation, force your carpenters to communicate with the flooring team. Always aim for a target height of 34.5 inches from the subfloor to give yourself a safe compliance buffer.
Should Installers Measure the Center or Top for ADA Bathroom Grab Bar Height?
The second biggest culprit behind the “half-inch too low” mystery is a deeply ingrained habit among experienced carpenters and handymen: measuring from the center point.
When hanging a heavy mirror or placing a plumbing pipe, finding the centerline is standard practice. However, strict ada bathroom grab bar requirements throw this traditional logic out the window. According to the U.S. Access Board ADA Standards (Section 609), grab bars must be installed between 33 and 36 inches above the finished floor, and this applies exclusively to the top of the gripping surface.
Let’s look at the math. A heavy-duty commercial grab bar from George Buildshop typically has a diameter of 1.5 inches. If your installer draws a line on the wall at exactly 33 inches and drills the center of the mounting flange directly over that line, the top of the bar will sit at 33.75 inches (which is fine), but the bottom sits at 32.25 inches.
However, if your installer aims for the top of the bar to hit a lower mark, or if they accidentally align the top of the mounting flange instead of the bar itself, the actual gripping surface drops below the 33-inch minimum.
Let’s look at how measuring habits impact your final ada bathroom grab bar layout:
The Impact of Measuring Habits on a 1.5″ Diameter Grab Bar
👉 Swipe horizontally to view the full table
| Installer's Measuring Habit | Wall Mark Made at (AFF) | Actual Top Gripping Surface | Is it ADA Compliant? |
|---|---|---|---|
| Measures to the Center | 32.5 inches | 33.25 inches | ✅ Pass (But Risky) |
| Measures to the Center | 32.0 inches | 32.75 inches | ❌ Fail (Half Inch Too Low) |
| Measures to the Top | 34.0 inches | 34.0 inches | ✅ Pass (Safe & Perfect) |
| Measures to the Bottom | 33.0 inches | 34.5 inches | ✅ Pass (Safe & Perfect) |
As a hotel project manager, you must mandate that your team abandons the centerline habit entirely to ensure the ada bathroom grab bar height is correct.
What Is the ADA Bathroom Placement of Grab Bars Around Toilet Areas?
As a commercial project leader, you know that height is only one piece of the puzzle. Understanding the correct ada bathroom grab bar layout is a key part of meeting modern ada bathroom grab bar requirements for hotels and commercial buildings. A correct ada bathroom grab bar layout ensures both accessibility compliance and user safety. If your layout is off by even an inch horizontally, the entire bathroom fails.
In one 200-room hotel renovation project in Southeast Asia, our team at George Buildshop helped contractors redesign the entire ada bathroom grab bar layout after local inspectors flagged severe compliance issues with their horizontal spacing. We saved them weeks of delays by standardizing their measurements.
Here is the exact blueprint I share with our B2B partners when planning the standard ada bathroom grab bar layout for commercial toilet areas:
Commercial Toilet Grab Bar Placement Specifications
👉 Swipe horizontally to view the full ADA grab bar requirements table
| Grab Bar Location | Minimum Length Required | Distance from Rear Wall | Specific Positioning Rules (ADA Code) |
|---|---|---|---|
| Side Wall (Horizontal) | 42 inches (1065 mm) | Max 12 inches (305 mm) | Must extend at least 54 inches from the rear wall in total. |
| Rear Wall (Horizontal) | 36 inches (915 mm) | N/A | Must extend 12" on one side of the toilet centerline and 24" on the open side. |
| Side Wall (Vertical) — ICC A117.1 | 18 inches (455 mm) | 39–41 inches | Bottom edge must be positioned 39–41 inches above finished floor. |
| Wall Clearance Gap | N/A | N/A | There must be exactly 1.5 inches of clearance between the wall and the grab bar. |
When calculating the ada bathroom placement of grab bars around toilet zones, remember that the 1.5-inch wall clearance is non-negotiable. When you purchase wholesale supplies from George Buildshop, our flanges are pre-engineered to guarantee this exact clearance right out of the box, fulfilling all strict ada bathroom grab bar requirements.
In addition to horizontal placement specifications, compliant ADA restroom layout also requires fixtures such as toilets to meet accessible toilet height standards, which together with grab bar height ensure comfortable use and inspection success.
How Can You Prevent Rework During Your ADA Bathroom Grab Bar Installation?
You cannot simply adjust a heavy-duty grab bar after a hotel bathroom is fully tiled. Once you drill through commercial porcelain or natural stone, those holes are permanent. Proper ada bathroom grab bar installation is essential for meeting strict ada bathroom grab bar requirements in commercial hospitality projects. Most ADA inspection failures occur not because of product quality, but because of incorrect installation measurements. It must begin during the framing stage to ensure compliance and structural strength.

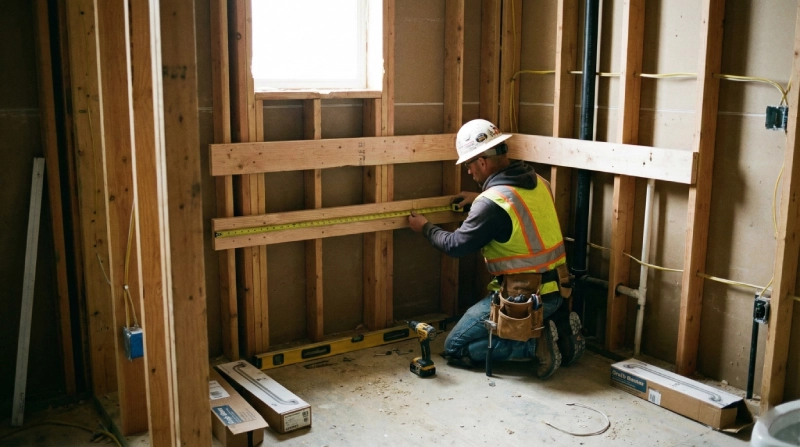

The Power of Wood Blocking Never rely on standard metal or wood wall studs to mount your commercial grab bars. Studs are rarely in the exact spot you need them. Furthermore, toggle bolts or drywall anchors are strictly forbidden by the ADA guidelines because they cannot support the mandated 250-pound weight load.
Instruct your framing crew to install continuous, heavy-duty wood blocking (usually 2×8 or 2×10 treated lumber) horizontally between the studs. I advise my B2B clients to install this blocking so it spans the entire wall area from 30 inches to 38 inches above the subfloor. This guarantees that your finishing carpenters will hit solid wood every single time they drill within the correct ada bathroom grab bar height range.
ADA Bathroom Grab Bar Installation Checklist
Before final inspection, confirm the following items:
✔ Grab bar height is 33–36 inches above finished floor
✔ Measurement is taken to the top of the gripping surface
✔ Proper wood blocking installed between studs
✔ Grab bars support at least 250 pounds of load
✔ Correct ada bathroom grab bar layout around the toilet
Why Do Hotel Project Managers Choose George Buildshop for ADA Grab Bars?
In the highly competitive hospitality construction industry, your supply chain makes or breaks your project timeline. You need materials that meet rigorous ada bathroom grab bar requirements while remaining contractor-friendly.
George Buildshop has supported hospitality and commercial construction projects in more than 30 countries, providing ADA-compliant bathroom fixtures for hotels, resorts, and public buildings worldwide. When you are planning the ada bathroom placement of grab bars around toilet and shower areas for a luxury resort, you cannot afford inconsistent manufacturing. Here is why industry leaders choose to partner with us:
Standard Suppliers vs. George Buildshop
👉 Swipe horizontally to view the full comparison
| Feature / Benefit | Standard Market Grab Bars | George Buildshop Commercial Series |
|---|---|---|
| Mounting Flanges | Fixed, exposed screws | Concealed flanges with elongated screw slots for micro-adjustments during ADA bathroom grab bar installation. |
| Weight Capacity | 250 lbs (Bare minimum) | 500+ lbs heavy-duty structural steel, exceeding ADA safety mandates. |
| Clearance Accuracy | Often varies by 0.25 inches | Engineered for a strict, flawless 1.5-inch wall clearance. |
| B2B Service | Retail pricing, slow shipping | Factory-direct wholesale pricing, bulk fulfillment, and expert ADA bathroom grab bar layout support. |
At George Buildshop, we provide engineered compliance solutions. Our concealed mounting flanges give your installation team a tiny bit of rotational forgiveness, ensuring the bar remains perfectly level while maintaining the precise ada bathroom grab bar height.
FAQ: ADA Bathroom Grab Bars
1. What is the minimum ADA bathroom grab bar height?
The minimum ada bathroom grab bar height is 33 inches above the finished floor, measured specifically to the top of the gripping surface. The maximum height is 36 inches.
2. How far should grab bars be from the toilet?
According to strict ada bathroom grab bar requirements, the side wall grab bar must start within a maximum of 12 inches of the rear wall and extend at least 42 inches in length.
3. Do ADA grab bars need blocking in the wall?
Yes. Proper ada bathroom grab bar installation requires structural backing, such as continuous wood blocking, to safely support the ADA-required 250-pound load capacity without damaging the wall.
4. What diameter should ADA grab bars be?
ADA standards require grab bars to have a diameter between 1.25 inches and 1.5 inches to ensure a secure grip. This diameter works together with the correct ada bathroom grab bar height and other ada bathroom grab bar requirements to provide safe accessibility.
5. Are ADA grab bars required in hotel bathrooms?
Yes. Under the ADA Standards for Accessible Design, accessible guest rooms and public restrooms in hotels must include properly installed grab bars that follow strict ada bathroom grab bar requirements for height, placement, and structural support.
Get ADA-Compliant Grab Bars for Your Next Hotel Project
Getting the ada bathroom grab bar height wrong by half an inch is an expensive mistake you simply cannot afford. By understanding the finished floor trap, measuring accurately to the top of the bar, and planning your structural blocking early, you can pass your inspections with zero rework.
At George Buildshop, we specialize in supporting ada bathroom grab bar installation projects by supplying fully compliant fixtures for hotels and commercial buildings. Our team supports contractors, architects, and procurement managers working on hotel and commercial construction projects with:
ADA-compliant grab bar manufacturing
Professional ada bathroom grab bar layout guidance
Reliable bulk project supply and logistics
Global hospitality project experience
If you are planning a hotel renovation or commercial bathroom project, our experts at George Buildshop can help you design the correct ada bathroom grab bar layout and supply fully compliant grab bars in bulk.
👉 Contact George Buildshop today to request a project quote and secure factory-direct pricing. Let’s build something compliant, beautiful, and lasting together!
Related ADA Bathroom Compliance Guides
References
U.S. Access Board. ADA Standards for Accessible Design – Section 609 Grab Bars https://www.access-board.gov/ada/
